Model |

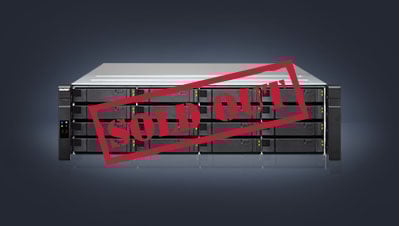

ES1640dc v2 |
|
|
CPU |
Intel Xeon E5-2400 v2 family processor |
|
Intel Xeon 6-core Processor E5-2420 v2 (15M Cache, 2.20GHz) |
|
|
Memory |
System memory: DDR3 RDIMM |
|
32GB/64GB Main Memory + 16GB write cache PER CONTROLLER. |
|
Total memory slots: 6 (Dual controllers; 2 x main memory DIMM and 1 x write cache DIMM for NVRAM for each |
|
controller.) |
|
|
Flash Memory |
2 GB DOM |
|
|
USB |
2 x USB 3.0/2.0 port (For Developement and debug only) |
|
|
Hard Drive |
16 x 3.5"/2.5" SAS 12Gbps/6Gbps hard drive, or 2.5" SAS SSD; lockable tray |
|
|
Maximized Raw Capacity |
160 TB (Configuration: 16 x 10 TB hard drives) |
|
|
Hard Drive Interface |
SAS 12Gb/s, backward-compatible to SAS 6Gb/s |
|
|
10/100/1000 Mbps LAN Port |
1 for each controller (for remote management) |
|
|
10Gbps LAN Port |
4 x SFP+ (Intel XL710-AM1) and 2 x RJ45 (LAN-10G2T-X550) for each controller |
|
|
PCIe Slot |
PCIe Slot x8 (Gen3 x8): Pre-installed with a LAN-10G2T-X550 NIC (2 x 10GbE RJ45 ports), replacable with a 40GbE NIC |
|
PCIe Slot x4 (Gen2 x4): Pre-installed with a dual-port Mini-SAS adapter |
|
|
Cache for Copy To Flash (C2F) |
M.2 2280 SSD (64GB) dedicated to NVRAM, SATA signaling |
|
|
Power Supply |
770 W (Redundancy for fault tolerance) |
|
|
Fan |
ot-swappable fan module (60*60*38mm; 16000RPM/12v/2.8A x 3) |
|
|
Dimension |
618(D) x 446.2(W) x 132(H) mm (excluding front grips) |
|
|
