Model |

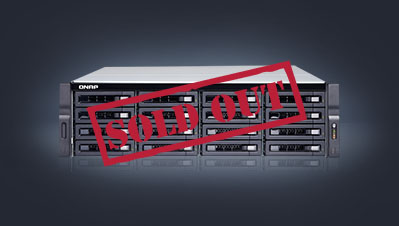

TDS-16489U |
|
|
CPU |
Intel®Xeon® E5-2600 v3 Family Processors |
|
A: Intel® Xeon® 6 core Processor E5-2620 v3 (15M Cache, 2.40 GHz) |
|
B :Intel®Xeon® 8 core Processor E5-2630 v3 (20M Cache, 2.40 GHz) |
|
C: Intel® Xeon®4 core Processor E5-2623 v3 (10M Cache, 3.00 GHz, 4 core) ** |
|
D:Intel® Xeon®8 core Processor E5-2640 v3 (20M Cache, 2.60 GHz) ** |
|
|
Memory |
System memory: RDIMM / LRDIMM |
|
Total memory slots: 16 |
|
Memory expandable up to: 1 TB (64 GB x 16) |
|
|
USB 2.0 / 3.0 |
1 |
|
|
Internal Hard Drive and Type |
16 x 3.5"SAS (12Gbps/6Gbps) / SATA (6Gbps/3Gbps) HDDs,or 2.5"SAS/SATA SSD |
|
4 x 2.5"SAS (12Gbps) SSD or SAS/SATA (6Gbps/3Gbps) SSD |
|
|
Max. Raw Capacity |
128TB |
|
|
Interface |
SAS 12Gb/s backward-compatible to SAS/SATA 6Gb/s |
|
|
10/100/1000 Mbps |
2 |
|
|
10Gbps |
4 x SFP+, Intel XL710 |
|
|
PCIe slot |
4 (3 x PCIe Gen3 x8, 1x PCIe Gen3 x16) |
|
|
Cache |
M.2 Gen.2x4 |
|
|
Power |
650W (Redundant) |
|
|
Fan |
Smart Fan 4 (6cm 12V DC) |
|
|
Noise |
Sound Pressure Level (LpAm): 64.8 dB |
|
|
Power Consumption |
Sleep mode: 254.21 W |
|
In Operation: 362.86 W |
|
|
Dimensions (HxWxD) |
88(H) x 442.5(W) x 530.5(D) mm |
|
|
Weight |
Net (NAS):22.42 kg/ 49.43 lb |
|
Gross (with accessories and package):30.19 kg/ 66.56 lb |
|
|
