Model |

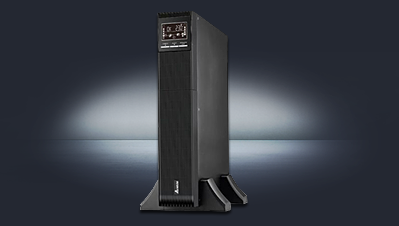

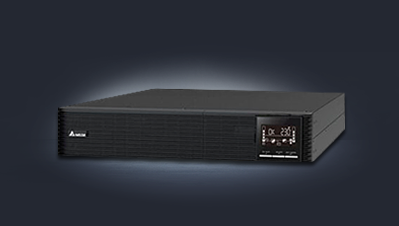

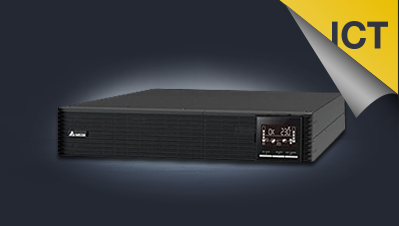

UPS “Delta” Amplon Family 3000VA/2700W (MX-3K) |
|
|
Output Power Capacity |
3000VA/ 2700Watts |
|
|
Nominal Frequency (Input) |
50/60 Hz |
|
|
Topology |
Line interactive |
|
|

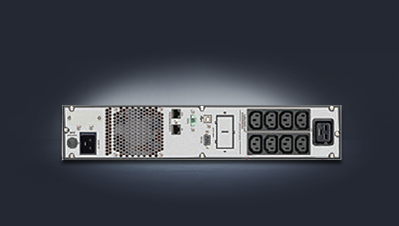

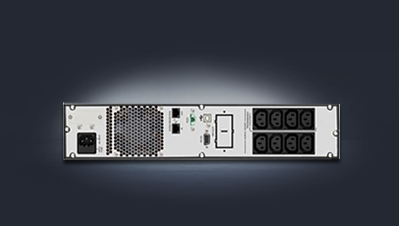

Output Connections |
RS-232 Port x 1, USB Port x 1, MINI Slot x 1, Surge Protection, REPO |
|
|
Nominal Frequency (Output) |
50 Hz or 60 Hz +- 1 Hz |
|
|
Input Voltage Range for Main Operation |
200V: 150-234V / 208V: 156-243V / 220V: 162-268V / |
|
230V: 170-280V / 240V: 177-290V |
|
|
Connection |
IEC C13 (4+4) |
|
|
Overload |
103% ~ 120% : 5 minutes (1 minute @ Battery mode), |
|
120% ~ 150% : 10 seconds, |
|
>150% : UPS shutdown immediately |
|
|
Harmonic Distortion |
Linear load (full load) ≤2% |
|
Non-linear load (full load) ≤5% |
|
|
Waveform (Batt. Mode) |
Pure Sinewave |
|
|
Numbers |
[3K] : 6 |
|
|
Typical Recharge Time |
4 hours recover to 90% capacity |
|
|
Battery Type |
12V/9Ah |
|
|
Dimensions (W x D x H) |
438 x 630 x 88mm |
|
|
Net Weight |
32.1kg |
|
|
Warranty |
2 Years On-site |
